When creating a SOLIDWORKS task pane, the SOLIDWORKS API documentation says that icon transparency can be handled by using a specific background color. For CreateTaskpaneView3, the documentation explains that task pane bitmap images should use a 256-color palette, and that the transparent area should use the following color: The expectation is simple: wherever the icon uses that gray color, SOLIDWORKS should treat it as transparent. In practice, that does not always work. You may create the icon exactly as described, use the correct gray background color, and still see a gray box behind the icon inside SOLIDWORKS. The documentation suggests that this gray color should be treated as transparent. However, when the task pane loads, SOLIDWORKS may still display the gray background. This can make the task pane icon look unfinished or inconsistent with the rest of the SOLIDWORKS interface. This usually means the image background was not actually transparent. It was only colored gray, and SOLIDWORKS did not remove it during rendering. The Solution: I have not been able to verify this for older version of SOLIDWORKS. Instead of depending on SOLIDWORKS to interpret RGB(192, 192, 192) as transparent, remove the background from the image and save it as a PNG with real transparency. This gives SOLIDWORKS a cleaner image to work with and avoids the visible gray background issue. Use an image editor that supports real PNG transparency and layers. I highly suggest good old mspaint.exe. This works great if you are on Windows 11 with the AI-enabled MSPaint. The general process is: After saving, the background should be truly transparent instead of just colored gray in SOLIDWORKS.

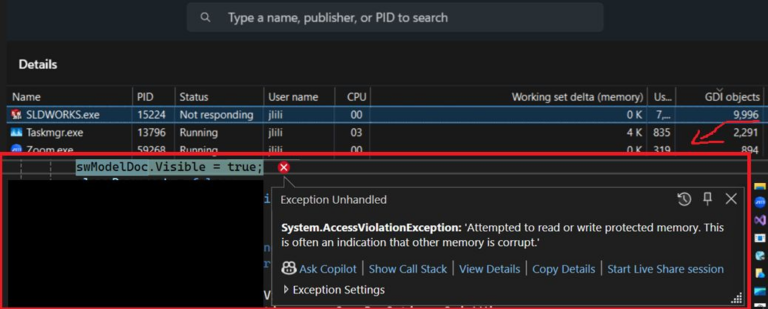

When building long-running SOLIDWORKS API tools, crashes are not always caused by high RAM usage. One of the most common causes of instability is excessive GDI object usage combined with unreleased COM objects. This often appears during batch automation jobs where SOLIDWORKS repeatedly opens documents, makes them visible, generates previews, switches windows, or captures images. The most typical symptom is the “Memory access violation” exception which tends to crash SOLIDWORKS. In many cases, the real issue is that GDI objects are slowly accumulating until the process reaches the Windows limit. What Causes GDI Object Leaks? GDI objects are Windows resources used for UI rendering. They include: In the SOLIDWORKS API, GDI count can increase rapidly if you repeatedly: At the same time, COM references to SOLIDWORKS objects can remain alive longer than expected if they are not released manually. Common SOLIDWORKS COM objects that should be released include: Opening documents silently is usually much safer than opening them visibly. When a document is made visible, SOLIDWORKS creates additional windows, previews, feature manager graphics, graphics pipeline objects, and UI resources. For example: swApp.Visible = true;var model = swApp.OpenDoc6(path, type, options, “”, ref errors, ref warnings); If this occurs repeatedly inside a large loop without proper cleanup, the GDI count can climb rapidly. This is especially common when processing: How to Monitor GDI Object Count You can monitor GDI usage directly in Windows Task Manager: Watch the SLDWORKS.exe process while your code runs. If the GDI count keeps climbing and never comes back down, you likely have a leak. Once a process gets close to around 10,000 GDI objects, crashes and instability become much more likely. Best Practices to Avoid Crashes 1. Dispose Graphics Resources Always wrap GDI-related objects in using blocks: using (Bitmap bmp = new Bitmap(width, height))using (Graphics g = Graphics.FromImage(bmp)){ g.Clear(Color.White); // Draw content here bmp.Save(outputPath);} This applies to: 2. Close Documents Immediately Never leave documents open longer than necessary: ModelDoc2 model = null;try{ model = swApp.OpenDoc6(path, type, options, “”, ref errors, ref warnings); // Process document}finally{ if (model != null) { swApp.CloseDoc(model.GetTitle()); Marshal.ReleaseComObject(model); model = null; }} 3. Release COM Objects Aggressively SOLIDWORKS API objects often remain alive even after they go out of scope. Release them manually: if (feature != null){ Marshal.ReleaseComObject(feature); feature = null;}if (component != null){ Marshal.ReleaseComObject(component); component = null;} This is especially important in loops processing hundreds or thousands of components, features, faces, or bodies. 4. Periodically Force Garbage Collection For large batch operations, periodic garbage collection can help reduce memory pressure: GC.Collect();GC.WaitForPendingFinalizers();GC.Collect(); This should not replace proper disposal and COM cleanup, but it can help stabilize long-running jobs. 5. Prefer Silent Processing Whenever possible, process documents silently instead of visibly: int options = (int)swOpenDocOptions_e.swOpenDocOptions_Silent; This reduces UI overhead and significantly lowers GDI usage. Final Thoughts If your SOLIDWORKS API application crashes after running for a long time, do not assume the issue is only RAM usage. Monitor GDI objects, dispose of graphics resources, close documents immediately, and aggressively release COM references. These small changes can make a major difference in the stability of long-running SOLIDWORKS automation tools, especially when processing large assemblies, exporting files, or generating previews. For large PDM tasks, image generation, PDF export, or batch automation jobs, careful cleanup is often the difference between a stable application and one that crashes after a few hundred files.

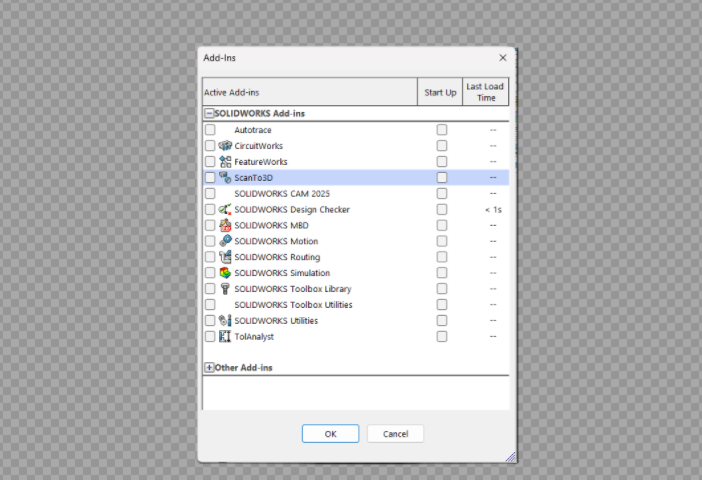

If you are developing a SOLIDWORKS add-in as a .NET Framework (version 4 and older) application, you will need to register your SOLIDWORKS Add-in DLL so that SOLIDWORKS can find it and load it. This guide explains how to register a SOLIDWORKS add-in DLL (64-bit) and covers manual registration for developers who will register from the command-line program. Disclaimer: This method will only work for the old legacy .NET Framework 2, 3, and 4. Step-by-Step Instructions (64-bit or Any CPU) This is normal during development. You should, when in production, use a strong name key to sign your assembly. What About 32-bit Registration? What About 32-bit DLLs? You are only required to register 64-bit DLLs for all of today’s current versions of SOLIDWORKS, as all of them run as SolidWorks 64 bit applications. The only time you would, in fact, have to register a 32-bit DLL is if you’re targeting SOLIDWORKS 2013 or earlier. The process is the same, but uses the 32-bit version of RegAsm.exe: C:\Windows\Microsoft.NET\Framework\v4.0.30319\RegAsm.exe Unregistering The Add-in If you want to remove the add-in (e.g., cleaning up or switching between builds), just run: C:\Windows\Microsoft.NET\Framework64\v4.0.30319\RegAsm.exe /unregister PDMPublisher.dll Still Need Help? At Blue Byte Systems, we develop and maintain professional SOLIDWORKS add-ins for automation, analysis, UI enhancements, and system integration. If you are experiencing problems or require a dependable API resource, we are here to assist you with guides like how to register a SOLIDWORKS add-in DLL (64-bit). 👉 Contact us today to find your custom solution!
