OVERVIEW

REQUIRMENTS

  • SOLIDWORKS: SOLIDWORKS 2014
  • SOLIDWORKS PDM: SOLIDWORKS PDM Professional 2018

WHAT DOES IT DO?

PDMPublisher is a sophisticated tool designed to streamline the export and conversion of SOLIDWORKS documents. This advanced task offers the following key capabilities:

FEATURES

WHAT YOU GET
  • ✅ Premium support
  • ✅ Licensed per vault
  • ✅ Unlimited users
  • ✅ Unlimited tasks
  • ✅ Logs cloud storage

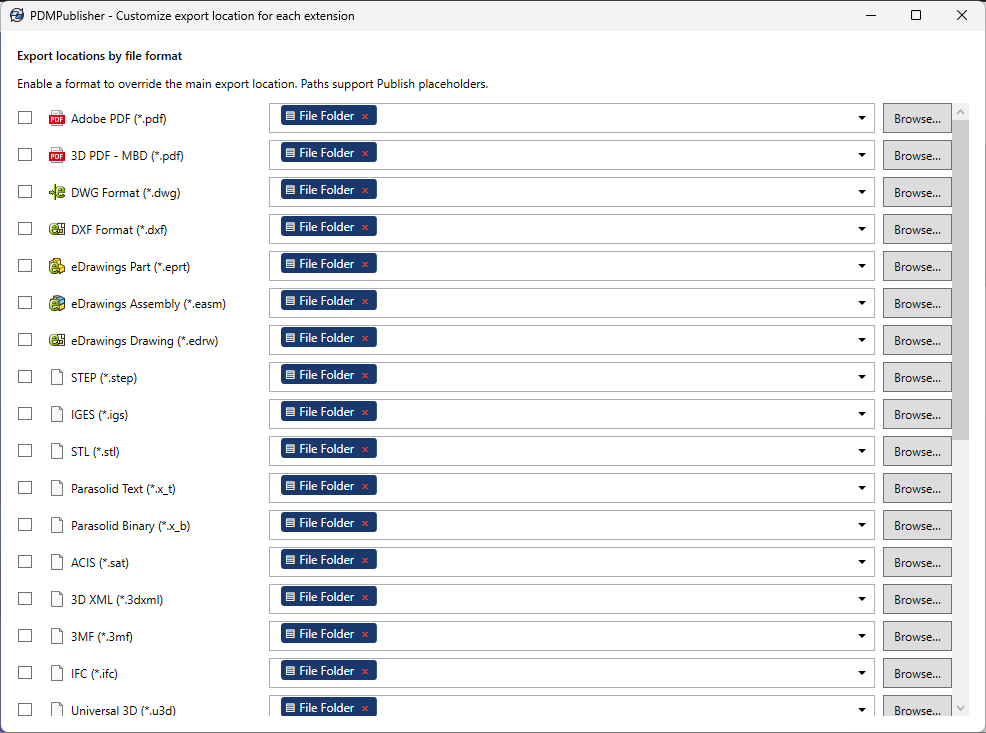

SUPPORTED EXTENSIONS
  • ✅ PDF extension is supported.
  • ✅ 2D Engineering Documents: DXF, DWG, and PDF.
  • ✅ 3D Engineering Documents: STEP, IGES, X_T.
  • ✅ eDrawings Professional Documents: eprt, edrw, easm.
  • ✅ HTML (Requires e-Drawings Professional).

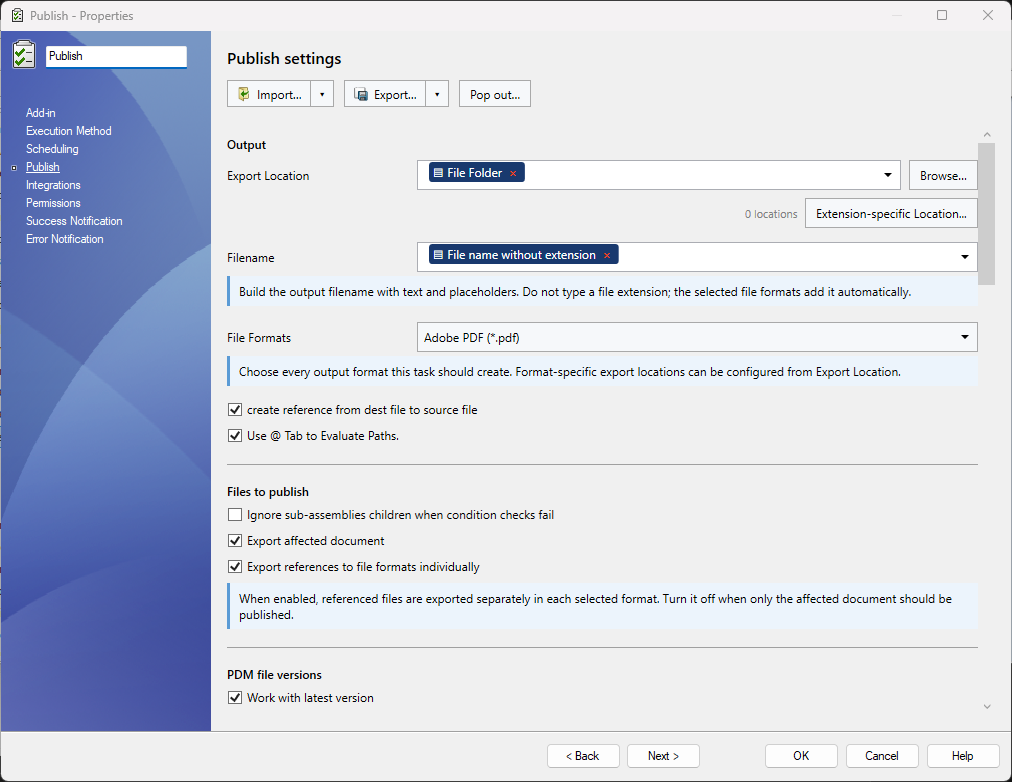

SMART FOLDER AND FILE NAME CREATOR
  • ✅ Exports documents inside and outside the vault.
  • ✅ Creates folder structure if it does not exist.
  • ✅ Use datacard variables.
  • ✅ Use workflow, state, version, revision, and configuration name values.
  • ✅ Use the host machine username and launching username.
  • ✅ Use the root folder.
  • ✅ Use Top level-assembly folder.

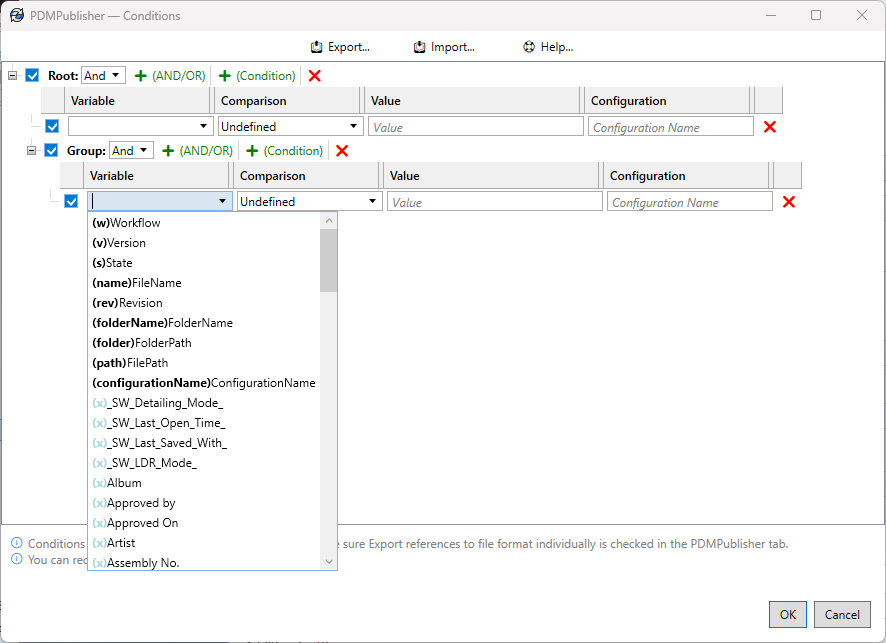

CONDITIONS
  • ✅ Use workflow-like conditions to specify which documents to print.

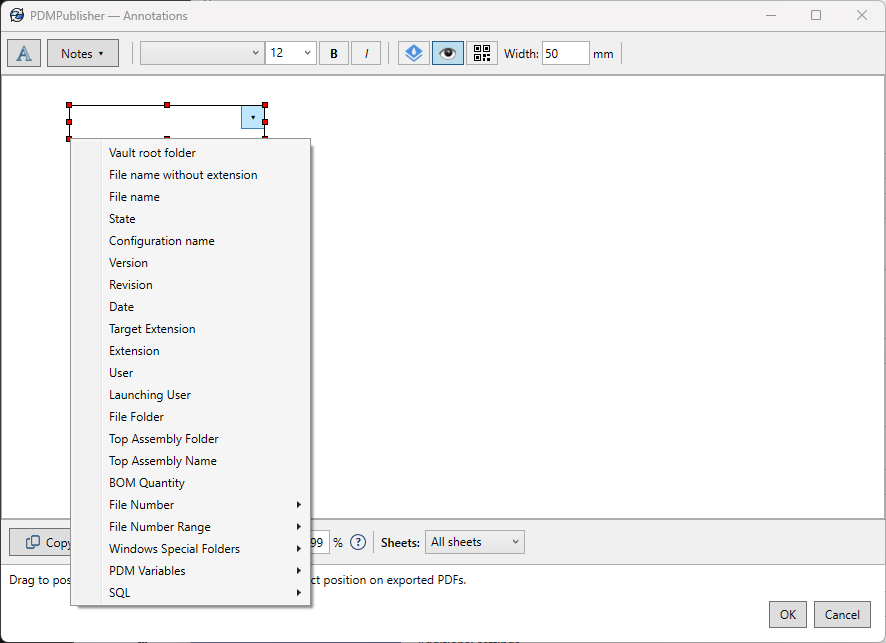

ADD ANY NOTES ANYWHERE ON PDFS
  • ✅ Add notes to the PDFs anywhere on the sheet.
  • ✅ Combine text and card variables.
  • ✅ Additional dynamic variables include: user, launching user, datetime, workflow, top-level assembly.

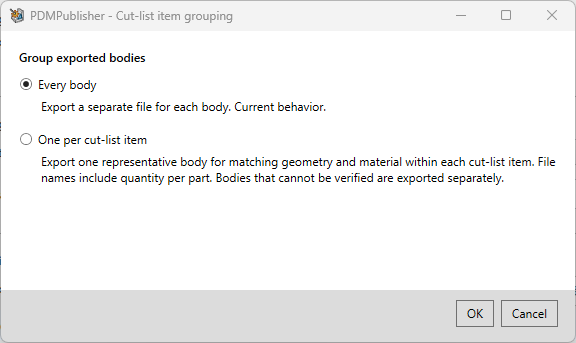

SHEET METAL
  • ✅ Export 1:1 DXF sheet metal flat pattern.
FREQUENT ENGINEERING TASKS
  • ✅ Print and Merge PDFs of top-level assemblies.
  • ✅ Add manufacturing quantities to PDFs.
  • ✅ Archive PDFs.
  • ✅ Watermark on PDFs.
